Luo & Rudy 1994¶

Key: luo1994dynamic

This model provides the basis for the study of arrhythmogenic activity of the single myocyte including afterdepolarizations and triggered activity (by including descriptions of Ca2+ regulated currents). It can simulate cellular responses under different degrees of Ca2+ overload.

References¶

https://doi.org/10.1161/01.res.74.6.1071

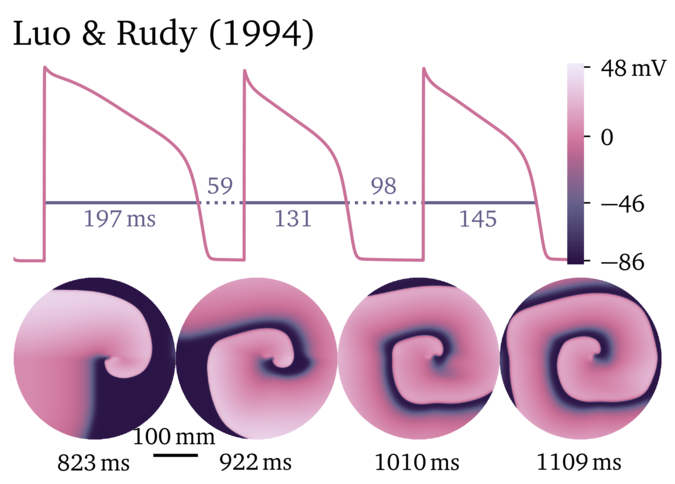

Figure¶

Variables¶

V = -84.624
m = 0.0
h = 1.0
j = 1.0
d = 0.0
f = 1.0
X = 0.0
Nai = 10.0
Cai = 0.00012
Ki = 145.0
Ca_JSR = 1.8
Ca_NSR = 1.8

Parameters¶

diffusivity_V = 1.0
f_Ca_Km_Ca = 0.0006
I_up = 0.005
K_mup = 0.00092
tau_tr = 180.0
K_leak = 0.0003333333333333333
G_rel = -0.0
I_pCa = 0.0115
K_mpCa = 0.0005
P_Ca = 5.4e-06
P_K = 1.93e-09
P_Na = 6.75e-09
gamma_Cai = 1.0
gamma_Cao = 0.34
gamma_Ki = 0.75
gamma_Ko = 0.75
gamma_Nai = 0.75
gamma_Nao = 0.75
K_NaCa = 20.0
K_mCa = 1.38
K_mNa = 87.5
K_sat = 0.1
eta = 0.35
g_Cab = 3.016e-05
g_Na = 0.16
Am = 200.0
Cao = 1.8
Ko = 5.4
Nao = 140.0
V_JSR = 0.0048
V_NSR = 0.0552
V_myo = 0.68
Cm = 0.01
F = 96845.0
R = 8314.5
T = 310.0
K_m_ns_Ca = 0.0012
P_ns_Ca = 1.75e-09
g_Kp = 0.000183
g_Nab = 1.41e-05
I_NaK = 0.015
K_mKo = 1.5
K_mNai = 10.0
sigma = 1.0009103049457284
PR_NaK = 0.01833
g_K = 0.00282
g_K1 = 0.0075

Source code¶
OpenCL kernel// L type Ca channel d gate
const Real d_inf = 1.0 / (1.0 + exp(-((V + 10.0) / 6.24)));
const Real tau_d = d_inf * safe_divide(1.0 - exp(-((V + 10.0) / 6.24)), 0.035 * (V + 10.0));
*_new_d = d_inf + (d - d_inf) * exp(-safe_divide(dt, tau_d));

// L type Ca channel f Ca gate
const Real f_Ca_f_Ca = 1.0 / (1.0 + pow(Cai / f_Ca_Km_Ca, 2.0));

// L type Ca channel f gate
const Real f_inf = 1.0 / (1.0 + exp((V + 35.06) / 8.6)) + 0.6 / (1.0 + exp((50.0 - V) / 20.0));
const Real tau_f = 1.0 / (0.0197 * exp(-pow(0.0337 * (V + 10.0), 2.0)) + 0.02);
*_new_f = f_inf + (f - f_inf) * exp(-dt / tau_f);

// calcium fluxes in the SR
const Real i_tr = (Ca_NSR - Ca_JSR) / tau_tr;
const Real i_up = I_up * (Cai / (Cai + K_mup));
const Real i_leak = K_leak * Ca_NSR;
const Real i_rel = G_rel * (Ca_JSR - Cai);

// fast sodium current h gate
const Real alpha_h = ((V < -40.0) ? 0.135 * exp((80.0 + V) / -6.8) : 0.0);
const Real beta_h = ((V < -40.0) ? 3.56 * exp(0.079 * V) + 310000.0 * exp(0.35 * V) : 1.0 / (0.13 * (1.0 + exp((V + 10.66) / -11.1))));
const Real tau_h = 1.0 / (alpha_h + beta_h);
const Real h_inf = alpha_h * tau_h;
*_new_h = h_inf + (h - h_inf) * exp(-dt / tau_h);

// fast sodium current j gate
const Real alpha_j = ((V < -40.0) ? (-127140.0 * exp(0.2444 * V) - 3.474e-05 * exp(-0.04391 * V)) * ((V + 37.78) / (1.0 + exp(0.311 * (V + 79.23)))) : 0.0);
const Real beta_j = ((V < -40.0) ? 0.1212 * exp(-0.01052 * V) / (1.0 + exp(-0.1378 * (V + 40.14))) : 0.3 * exp(-2.535e-07 * V) / (1.0 + exp(-0.1 * (V + 32.0))));
const Real tau_j = 1.0 / (alpha_j + beta_j);
const Real j_inf = alpha_j * tau_j;
*_new_j = j_inf + (j - j_inf) * exp(-dt / tau_j);

// fast sodium current m gate
const Real alpha_m = 0.32 * safe_divide(V + 47.13, 1.0 - exp(-0.1 * (V + 47.13)));
const Real beta_m = 0.08 * exp(-V / 11.0);
const Real tau_m = 1.0 / (alpha_m + beta_m);
const Real m_inf = alpha_m * tau_m;
*_new_m = m_inf + (m - m_inf) * exp(-dt / tau_m);

// sarcolemmal calcium pump
const Real i_p_Ca = I_pCa * (Cai / (K_mpCa + Cai));

// time dependent potassium current X gate
const Real alpha_X = 7.19e-05 * safe_divide(V + 30.0, 1.0 - exp(-0.148 * (V + 30.0)));
const Real beta_X = 0.000131 * safe_divide(V + 30.0, -1.0 + exp(0.0687 * (V + 30.0)));
const Real tau_X = safe_divide(1.0, alpha_X + beta_X);
const Real X_inf = alpha_X * tau_X;
*_new_X = X_inf + (X - X_inf) * exp(-safe_divide(dt, tau_X));

// time dependent potassium current Xi gate
const Real Xi = 1.0 / (1.0 + exp((V - 56.26) / 32.1));

// ionic concentrations
*_new_Ca_NSR = Ca_NSR + dt*(-(i_leak + i_tr - i_up));
*_new_Ca_JSR = Ca_JSR + dt*(-(i_rel - i_tr * (V_NSR / V_JSR)));

// non specific calcium activated current
const Real EnsCa = R * T / F * log((Ko + Nao) / (Ki + Nai));
const Real Vns = V - EnsCa;
const Real I_ns_K = P_ns_Ca * (Vns * F * F / (R * T)) * safe_divide(gamma_Ki * Ki * exp(Vns * F / (R * T)) - gamma_Ko * Ko, exp(Vns * F / (R * T)) - 1.0);
const Real I_ns_Na = P_ns_Ca * (Vns * F * F / (R * T)) * safe_divide(gamma_Nai * Nai * exp(Vns * F / (R * T)) - gamma_Nao * Nao, exp(Vns * F / (R * T)) - 1.0);
const Real i_ns_K = I_ns_K * (1.0 / (1.0 + pow(K_m_ns_Ca / Cai, 3.0)));
const Real i_ns_Na = I_ns_Na * (1.0 / (1.0 + pow(K_m_ns_Ca / Cai, 3.0)));
const Real i_ns_Ca = i_ns_Na + i_ns_K;

// plateau potassium current
const Real Kp = 1.0 / (1.0 + exp((7.488 - V) / 5.98));

// sodium potassium pump
const Real f_NaK = 1.0 / (1.0 + 0.1245 * exp(-0.1 * (V * F / (R * T))) + 0.0365 * sigma * exp(-(V * F / (R * T))));
const Real i_NaK = I_NaK * f_NaK * (1.0 / (1.0 + pow(K_mNai / Nai, 1.5))) * (Ko / (Ko + K_mKo));

// time dependent potassium current
const Real E_K = R * T / F * log((Ko + PR_NaK * Nao) / (Ki + PR_NaK * Nai));
const Real i_K = g_K * X * X * Xi * (V - E_K);

// time independent potassium current
const Real E_K1 = R * T / F * log(Ko / Ki);

// time independent potassium current K1 gate
const Real alpha_K1 = 1.02 / (1.0 + exp(0.2385 * (V - E_K1 - 59.215)));
const Real beta_K1 = (0.49124 * exp(0.08032 * (V + 5.476 - E_K1)) + exp(0.06175 * (V - (E_K1 + 594.31)))) / (1.0 + exp(-0.5143 * (V - E_K1 + 4.753)));
const Real K1_inf = alpha_K1 / (alpha_K1 + beta_K1);

// *remaining*
const Real I_CaCa = P_Ca * 4.0 * (V * F * F / (R * T)) * safe_divide(gamma_Cai * Cai * exp(2.0 * V * F / (R * T)) - gamma_Cao * Cao, exp(2.0 * V * F / (R * T)) - 1.0);
const Real I_CaK = P_K * (V * F * F / (R * T)) * safe_divide(gamma_Ki * Ki * exp(V * F / (R * T)) - gamma_Ko * Ko, exp(V * F / (R * T)) - 1.0);
const Real I_CaNa = P_Na * (V * F * F / (R * T)) * safe_divide(gamma_Nai * Nai * exp(V * F / (R * T)) - gamma_Nao * Nao, exp(V * F / (R * T)) - 1.0);
const Real i_NaCa = K_NaCa * (1.0 / (K_mNa * K_mNa * K_mNa + Nao * Nao * Nao)) * (1.0 / (K_mCa + Cao)) * (1.0 / (1.0 + K_sat * exp((eta - 1.0) * V * (F / (R * T))))) * (exp(eta * V * (F / (R * T))) * Nai * Nai * Nai * Cao - exp((eta - 1.0) * V * (F / (R * T))) * Nao * Nao * Nao * Cai);
const Real E_CaN = R * T / (2.0 * F) * log(Cao / Cai);
const Real E_Na = R * T / F * log(Nao / Nai);
const Real E_Kp = E_K1;
const Real i_K1 = g_K1 * K1_inf * (V - E_K1);
const Real i_CaCa = d * f * f_Ca_f_Ca * I_CaCa;
const Real i_CaK = d * f * f_Ca_f_Ca * I_CaK;
const Real i_CaNa = d * f * f_Ca_f_Ca * I_CaNa;
const Real i_Ca_b = g_Cab * (V - E_CaN);
const Real i_Na = g_Na * m * m * m * h * j * (V - E_Na);
const Real i_Kp = g_Kp * Kp * (V - E_Kp);
const Real E_NaN = E_Na;
const Real i_Ca_L = i_CaCa + i_CaK + i_CaNa;
*_new_Cai = Cai + dt*(-(i_CaCa + i_p_Ca + i_Ca_b - i_NaCa) * (Am / (2.0 * V_myo * F)) + i_rel * (V_JSR / V_myo) + (i_leak - i_up) * (V_NSR / V_myo));
*_new_Ki = Ki + dt*(-(i_CaK + i_K + i_K1 + i_Kp + i_ns_K + -(i_NaK * 2.0)) * (Am / (V_myo * F)));
const Real i_Na_b = g_Nab * (V - E_NaN);
*_new_Nai = Nai + dt*(-(i_Na + i_CaNa + i_Na_b + i_ns_Na + i_NaCa * 3.0 + i_NaK * 3.0) * (Am / (V_myo * F)));
const Real dV_dt = -(i_Na + i_Ca_L + i_K + i_K1 + i_Kp + i_NaCa + i_p_Ca + i_Na_b + i_Ca_b + i_NaK + i_ns_Ca) / Cm;
*_new_V = V + dt*(dV_dt + _diffuse_V);

// check for unphysical values
if(*_new_Nai <= 0.0) { *_new_Nai = VERY_SMALL_NUMBER; }
if(*_new_Cai <= 0.0) { *_new_Cai = VERY_SMALL_NUMBER; }
if(*_new_Ki <= 0.0) { *_new_Ki = VERY_SMALL_NUMBER; }
if(*_new_Ca_JSR <= 0.0) { *_new_Ca_JSR = VERY_SMALL_NUMBER; }
if(*_new_Ca_NSR <= 0.0) { *_new_Ca_NSR = VERY_SMALL_NUMBER; }

Additional metadata¶

keywords:
- excitable media
- electrophysiology
- heart
- human
- ventricle
extra parameters:
  Ca_NSR_max: 15.0
  G_rel_max: 60.0
  K_mrel: 0.0008
  delta_Ca_i2: 0.0
  delta_Ca_ith: 0.00018
  t_CICR: 0.0
  tau_off: 2.0
  tau_on: 2.0
  G_rel_peak: 0.0
  g_K_max: 0.00282
  g_K1_max: 0.0075
example discretisation:
  dt: 0.017
  dx: 0.76
  stimulus: 60.9
units:
  t: ms
  x: mm
  u: mV
