Hodgkin & Huxley 1952

Key: hodgkin1952quantitative

This model describes the electrical conduction in giant nerve fibre of squids. It is one of the first mathematical models of electrophysiology.

References

  1. https://doi.org/10.1113/jphysiol.1952.sp004764

Figure

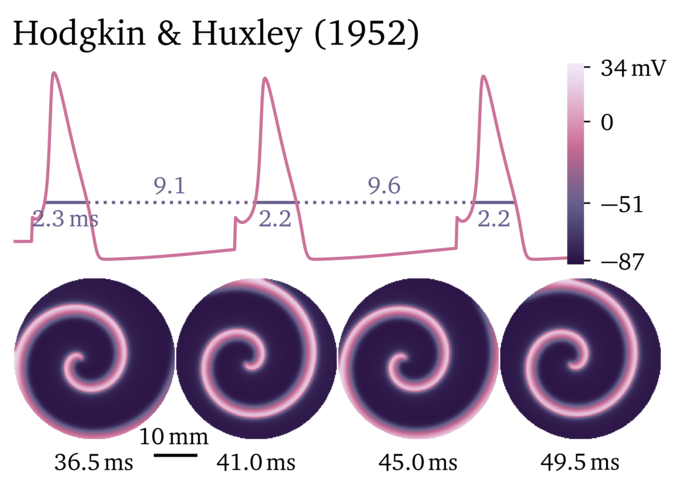

Figure illustrating the Hodgkin & Huxley 1952 model.

Variables

  1. V = -75.0

  2. n = 0.317

  3. m = 0.05

  4. h = 0.595

Parameters

  • diffusivity_V = 1.0

  • engine_pace = 0.0

  • leak_Eleak = -64.387

  • leak_g_max = 0.3

  • potassium_Ek = -87.0

  • potassium_g_max = 36.0

  • sodium_ENa = 40.0

  • sodium_g_max = 120.0

  • membrane_A = 100.0

  • membrane_C = 1.0

  • membrane_Vhold = -60.0

Source code

OpenCL kernel
// leak
const Real leak_i = leak_g_max * (V - leak_Eleak);

// potassium
const Real potassium_n_a = 0.01 * (-V - 65.0) / ((fabs(exp((-V - 65.0) / 10.0) - 1.0) < VERY_SMALL_NUMBER) ? ((exp((-V - 65.0) / 10.0) - 1.0 < 0.0) ? -VERY_SMALL_NUMBER : VERY_SMALL_NUMBER) : exp((-V - 65.0) / 10.0) - 1.0);
const Real potassium_n_b = 0.125 * exp((-V - 75.0) / 80.0);
*_new_n = n + dt*(potassium_n_a * (1.0 - n) - potassium_n_b * n);
const Real potassium_i = potassium_g_max * pow(n, 4.0) * (V - potassium_Ek);

// sodium
const Real sodium_h_a = 0.07 * exp((-V - 75.0) / 20.0);
const Real sodium_h_b = 1.0 / ((fabs(exp((-V - 45.0) / 10.0) + 1.0) < VERY_SMALL_NUMBER) ? ((exp((-V - 45.0) / 10.0) + 1.0 < 0.0) ? -VERY_SMALL_NUMBER : VERY_SMALL_NUMBER) : exp((-V - 45.0) / 10.0) + 1.0);
*_new_h = h + dt*(sodium_h_a * (1.0 - h) - sodium_h_b * h);
const Real sodium_m_a = 0.1 * (-V - 50.0) / ((fabs(exp((-V - 50.0) / 10.0) - 1.0) < VERY_SMALL_NUMBER) ? ((exp((-V - 50.0) / 10.0) - 1.0 < 0.0) ? -VERY_SMALL_NUMBER : VERY_SMALL_NUMBER) : exp((-V - 50.0) / 10.0) - 1.0);
const Real sodium_m_b = 4.0 * exp((-V - 75.0) / 18.0);
*_new_m = m + dt*(sodium_m_a * (1.0 - m) - sodium_m_b * m);
const Real sodium_i = sodium_g_max * pow(m, 3.0) * h * (V - sodium_ENa);

// membrane
const Real membrane_i_stim = (V - membrane_Vhold) * membrane_A * engine_pace;
*_new_V = V + dt*(-(1.0 / membrane_C) * (sodium_i + potassium_i + leak_i + membrane_i_stim) + _diffuse_V);

Additional metadata

keywords:
- excitable media
- electrophysiology
- squid
extra parameters:
  engine_time: 0.0
example discretisation:
  dt: 0.005
  dx: 0.2
  stimulus: 15.0
units:
  t: ms
  x: mm
  u: mV
