Paci et al. 2013

Key: paci2013computational

This model comprises two electrophysiological models of human induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CMs), distinguishing between ventricular-like and atrial-like phenotypes. Based on experimental data from Ma et al. (2011), the models reproduce spontaneous action potentials and responses to current blockers. They were developed to investigate the immature electrophysiological characteristics of hiPSC-CMs and the ionic mechanisms underlying their spontaneous activity and long AP durations. The model uses a Hodgkin–Huxley framework and was constructed to support drug testing and cardiac maturation studies. The default parameters are based on the ventricular-like formulation, with an increased IK1 to disable spontaneous activity, as suggested by the authors.

References

  1. https://doi.org/10.1007/s10439-013-0833-3

Figure

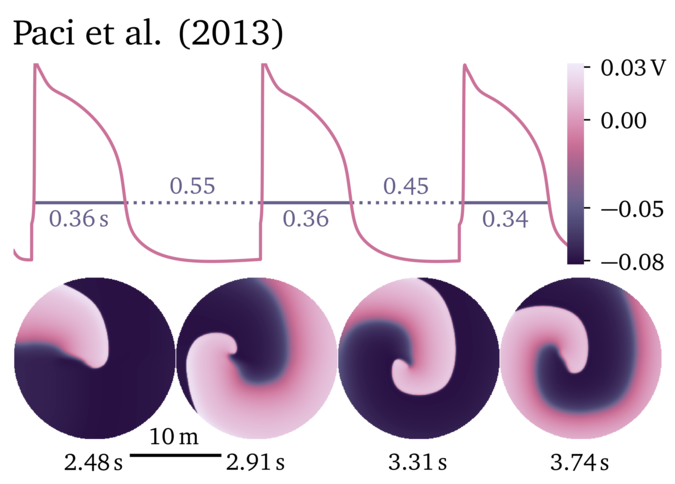

Figure illustrating the Paci et al. 2013 model.

Variables

  1. Vm = -0.0743340057623841

  2. m = 0.102953468725004

  3. h = 0.786926637881461

  4. j = 0.253943221774722

  5. d = 8.96088425225182e-05

  6. f1 = 0.970411811263976

  7. f2 = 0.999965815466749

  8. fCa = 0.998925296531804

  9. Xr1 = 0.00778547011240132

  10. Xr2 = 0.432162576531617

  11. Xs = 0.0322944866983666

  12. Xf = 0.100615100568753

  13. q = 0.839295925773219

  14. r = 0.00573289893326379

  15. Nai = 10.9248496211574

  16. Cai = 1.80773974140477e-05

  17. Ca_SR = 0.2734234751931

  18. g = 0.999999981028517

Parameters

  • diffusivity_Vm = 1.0

  • calcium_dynamics_Buf_C = 0.25

  • calcium_dynamics_Buf_SR = 10.0

  • calcium_dynamics_Kbuf_C = 0.001

  • calcium_dynamics_Kbuf_SR = 0.3

  • calcium_dynamics_Kup = 0.00025

  • calcium_dynamics_V_leak = 0.00044444

  • calcium_dynamics_VmaxUp = 0.56064

  • calcium_dynamics_a_rel = 16.464

  • calcium_dynamics_b_rel = 0.25

  • calcium_dynamics_c_rel = 8.232

  • calcium_dynamics_g_factor = 0.0411

  • calcium_dynamics_tau_g = 0.002

  • electric_potentials_E_K = -0.08880285397707481

  • electric_potentials_PkNa = 0.03

  • i_CaL_d_gate_offset_d = 9.1

  • i_CaL_f1_gate_offset_f1 = 26.0

  • i_CaL_f2_gate_constf2 = 1.0

  • i_CaL_f2_gate_offset_f2 = 35.0

  • i_CaL_fCa_gate_tau_fCa = 0.002

  • i_CaL_g_CaL = 8.635702e-05

  • i_K1_g_K1 = 50.0

  • i_Kr_E4031_coeff = 1.0

  • i_Kr_Xr1_gate_V_half = -20.69505995297709

  • i_Kr_g_Kr = 29.8667

  • i_Ks_Chromanol_coeff = 1.0

  • i_Ks_g_Ks = 2.041

  • i_NaCa_KmCa = 1.38

  • i_NaCa_KmNai = 87.5

  • i_NaCa_Ksat = 0.1

  • i_NaCa_alpha = 2.8571432

  • i_NaCa_gamma = 0.35

  • i_NaCa_kNaCa = 4900.0

  • i_NaK_Km_K = 1.0

  • i_NaK_Km_Na = 40.0

  • i_NaK_PNaK = 1.841424

  • i_Na_TTX_coeff = 1.0

  • i_Na_g_Na = 3671.2302

  • i_PCa_KPCa = 0.0005

  • i_PCa_g_PCa = 0.4125

  • i_b_Ca_g_b_Ca = 0.69264

  • i_b_Na_g_b_Na = 0.9

  • i_f_E_f = -0.017

  • i_f_g_f = 30.10312

  • i_to_g_to = 29.9038

  • model_parameters_Cao = 1.8

  • model_parameters_Cm = 9.87109e-11

  • model_parameters_F = 96485.3415

  • model_parameters_Ki = 150.0

  • model_parameters_Ko = 5.4

  • model_parameters_Nao = 151.0

  • model_parameters_R = 8.314472

  • model_parameters_T = 310.0

  • model_parameters_V_SR = 583.73

  • model_parameters_Vc = 8800.0

Source code

OpenCL kernel
// i_CaL_d_gate
const Real i_CaL_d_gate_alpha_d = 0.25 + 1.4 / (1.0 + exp((-Vm * 1000.0 - 35.0) / 13.0));
const Real i_CaL_d_gate_beta_d = 1.4 / (1.0 + exp((Vm * 1000.0 + 5.0) / 5.0));
const Real i_CaL_d_gate_d_infinity = 1.0 / (1.0 + exp(-(Vm * 1000.0 + i_CaL_d_gate_offset_d) / 7.0));
const Real i_CaL_d_gate_gamma_d = 1.0 / (1.0 + exp((-Vm * 1000.0 + 50.0) / 20.0));
const Real i_CaL_d_gate_tau_d = (i_CaL_d_gate_alpha_d * i_CaL_d_gate_beta_d + i_CaL_d_gate_gamma_d) * 1.0 / 1000.0;
*_new_d = i_CaL_d_gate_d_infinity + (d - i_CaL_d_gate_d_infinity) * exp(-(dt / i_CaL_d_gate_tau_d));

// i_CaL_f1_gate
const Real i_CaL_f1_gate_f1_inf = 1.0 / (1.0 + exp((Vm * 1000.0 + i_CaL_f1_gate_offset_f1) / 3.0));
const Real i_CaL_f1_gate_constf1 = ((i_CaL_f1_gate_f1_inf - f1 > 0.0) ? 1.0 + 1433.0 * (Cai - 50.0 * 1e-06) : 1.0);
const Real i_CaL_f1_gate_tau_f1 = (20.0 + (1102.5 * exp(-pow(pow(Vm * 1000.0 + 27.0, 2.0) / 15.0, 2.0)) + (200.0 / (1.0 + exp((13.0 - Vm * 1000.0) / 10.0)) + 180.0 / (1.0 + exp((30.0 + Vm * 1000.0) / 10.0))))) * i_CaL_f1_gate_constf1 / 1000.0;
*_new_f1 = i_CaL_f1_gate_f1_inf + (f1 - i_CaL_f1_gate_f1_inf) * exp(-(dt / i_CaL_f1_gate_tau_f1));

// i_CaL_f2_gate
const Real i_CaL_f2_gate_f2_inf = 0.33 + 0.67 / (1.0 + exp((Vm * 1000.0 + i_CaL_f2_gate_offset_f2) / 4.0));
const Real i_CaL_f2_gate_tau_f2 = (600.0 * exp(-pow(Vm * 1000.0 + 25.0, 2.0) / 170.0) + (31.0 / (1.0 + exp((25.0 - Vm * 1000.0) / 10.0)) + 16.0 / (1.0 + exp((30.0 + Vm * 1000.0) / 10.0)))) * i_CaL_f2_gate_constf2 / 1000.0;
*_new_f2 = i_CaL_f2_gate_f2_inf + (f2 - i_CaL_f2_gate_f2_inf) * exp(-(dt / i_CaL_f2_gate_tau_f2));

// i_CaL_fCa_gate
const Real i_CaL_fCa_gate_alpha_fCa = 1.0 / (1.0 + pow(Cai / 0.0006, 8.0));
const Real i_CaL_fCa_gate_beta_fCa = 0.1 / (1.0 + exp((Cai - 0.0009) / 0.0001));
const Real i_CaL_fCa_gate_gamma_fCa = 0.3 / (1.0 + exp((Cai - 0.00075) / 0.0008));
const Real i_CaL_fCa_gate_fCa_inf = (i_CaL_fCa_gate_alpha_fCa + (i_CaL_fCa_gate_beta_fCa + i_CaL_fCa_gate_gamma_fCa)) / 1.3156;
const Real i_CaL_fCa_gate_constfCa = (((Vm > -0.06) && (i_CaL_fCa_gate_fCa_inf > fCa)) ? 0.0 : 1.0);
*_new_fCa = fCa + dt*(i_CaL_fCa_gate_constfCa * (i_CaL_fCa_gate_fCa_inf - fCa) / i_CaL_fCa_gate_tau_fCa);

// i_Kr_Xr2_gate
const Real i_Kr_Xr2_gate_Xr2_infinity = 1.0 / (1.0 + exp((Vm * 1000.0 + 88.0) / 50.0));
const Real i_Kr_Xr2_gate_alpha_Xr2 = 3.0 / (1.0 + exp((-60.0 - Vm * 1000.0) / 20.0));
const Real i_Kr_Xr2_gate_beta_Xr2 = 1.12 / (1.0 + exp((-60.0 + Vm * 1000.0) / 20.0));
const Real i_Kr_Xr2_gate_tau_Xr2 = 1.0 * (i_Kr_Xr2_gate_alpha_Xr2 * i_Kr_Xr2_gate_beta_Xr2) / 1000.0;
*_new_Xr2 = i_Kr_Xr2_gate_Xr2_infinity + (Xr2 - i_Kr_Xr2_gate_Xr2_infinity) * exp(-(dt / i_Kr_Xr2_gate_tau_Xr2));

// i_Ks_Xs_gate
const Real i_Ks_Xs_gate_Xs_infinity = 1.0 / (1.0 + exp((-Vm * 1000.0 - 20.0) / 16.0));
const Real i_Ks_Xs_gate_alpha_Xs = 1100.0 / (sqrt(1.0 + exp((-10.0 - Vm * 1000.0) / 6.0)));
const Real i_Ks_Xs_gate_beta_Xs = 1.0 / (1.0 + exp((-60.0 + Vm * 1000.0) / 20.0));
const Real i_Ks_Xs_gate_tau_Xs = 1.0 * (i_Ks_Xs_gate_alpha_Xs * i_Ks_Xs_gate_beta_Xs) / 1000.0;
*_new_Xs = i_Ks_Xs_gate_Xs_infinity + (Xs - i_Ks_Xs_gate_Xs_infinity) * exp(-(dt / i_Ks_Xs_gate_tau_Xs));

// i_Na_h_gate
const Real i_Na_h_gate_alpha_h = ((Vm < -0.04) ? 0.057 * exp(-(Vm * 1000.0 + 80.0) / 6.8) : 0.0);
const Real i_Na_h_gate_beta_h = ((Vm < -0.04) ? 2.7 * exp(0.079 * (Vm * 1000.0)) + 3.1 * (pow(10.0, 5.0) * exp(0.3485 * (Vm * 1000.0))) : 0.77 / ((fabs(0.13 * (1.0 + exp((Vm * 1000.0 + 10.66) / -11.1))) < VERY_SMALL_NUMBER) ? ((0.13 * (1.0 + exp((Vm * 1000.0 + 10.66) / -11.1)) < 0.0) ? -VERY_SMALL_NUMBER : VERY_SMALL_NUMBER) : 0.13 * (1.0 + exp((Vm * 1000.0 + 10.66) / -11.1))));
const Real i_Na_h_gate_h_inf = 1.0 / (sqrt(1.0 + exp((Vm * 1000.0 + 72.1) / 5.7)));
const Real i_Na_h_gate_tau_h = ((Vm < -0.04) ? 1.5 / ((i_Na_h_gate_alpha_h + i_Na_h_gate_beta_h) * 1000.0) : 2.542 / 1000.0);
*_new_h = i_Na_h_gate_h_inf + (h - i_Na_h_gate_h_inf) * exp(-(dt / i_Na_h_gate_tau_h));

// i_Na_j_gate
const Real i_Na_j_gate_alpha_j = ((Vm < -0.04) ? (-25428.0 * exp(0.2444 * (Vm * 1000.0)) - 6.948 * (pow(10.0, -6.0) * exp(-0.04391 * (Vm * 1000.0)))) * (Vm * 1000.0 + 37.78) / (1.0 + exp(0.311 * (Vm * 1000.0 + 79.23))) : 0.0);
const Real i_Na_j_gate_beta_j = ((Vm < -0.04) ? 0.02424 * exp(-0.01052 * (Vm * 1000.0)) / (1.0 + exp(-0.1378 * (Vm * 1000.0 + 40.14))) : 0.6 * exp(0.057 * (Vm * 1000.0)) / (1.0 + exp(-0.1 * (Vm * 1000.0 + 32.0))));
const Real i_Na_j_gate_j_inf = 1.0 / (sqrt(1.0 + exp((Vm * 1000.0 + 72.1) / 5.7)));
const Real i_Na_j_gate_tau_j = 7.0 / ((i_Na_j_gate_alpha_j + i_Na_j_gate_beta_j) * 1000.0);
*_new_j = i_Na_j_gate_j_inf + (j - i_Na_j_gate_j_inf) * exp(-(dt / i_Na_j_gate_tau_j));

// i_Na_m_gate
const Real i_Na_m_gate_alpha_m = 1.0 / (1.0 + exp((-Vm * 1000.0 - 60.0) / 5.0));
const Real i_Na_m_gate_beta_m = 0.1 / (1.0 + exp((Vm * 1000.0 + 35.0) / 5.0)) + 0.1 / (1.0 + exp((Vm * 1000.0 - 50.0) / 200.0));
const Real i_Na_m_gate_m_inf = 1.0 / (pow(1.0 + exp((-Vm * 1000.0 - 34.1) / 5.9), 1.0 / 3.0));
const Real i_Na_m_gate_tau_m = 1.0 * (i_Na_m_gate_alpha_m * i_Na_m_gate_beta_m) / 1000.0;
*_new_m = i_Na_m_gate_m_inf + (m - i_Na_m_gate_m_inf) * exp(-(dt / i_Na_m_gate_tau_m));

// i_PCa
const Real i_PCa_i_PCa = i_PCa_g_PCa * Cai / (Cai + i_PCa_KPCa);

// i_f
const Real i_f_i_f = i_f_g_f * (Xf * (Vm - i_f_E_f));

// i_f_Xf_gate
const Real i_f_Xf_gate_Xf_infinity = 1.0 / (1.0 + exp((Vm * 1000.0 + 77.85) / 5.0));
const Real i_f_Xf_gate_tau_Xf = 1900.0 / (1.0 + exp((Vm * 1000.0 + 15.0) / 10.0)) / 1000.0;
*_new_Xf = i_f_Xf_gate_Xf_infinity + (Xf - i_f_Xf_gate_Xf_infinity) * exp(-(dt / i_f_Xf_gate_tau_Xf));

// i_to_q_gate
const Real i_to_q_gate_q_inf = 1.0 / (1.0 + exp((Vm * 1000.0 + 53.0) / 13.0));
const Real i_to_q_gate_tau_q = (6.06 + 39.102 / (0.57 * exp(-0.08 * (Vm * 1000.0 + 44.0)) + 0.065 * exp(0.1 * (Vm * 1000.0 + 45.93)))) / 1000.0;
*_new_q = i_to_q_gate_q_inf + (q - i_to_q_gate_q_inf) * exp(-(dt / i_to_q_gate_tau_q));

// i_to_r_gate
const Real i_to_r_gate_r_inf = 1.0 / (1.0 + exp(-(Vm * 1000.0 - 22.3) / 18.75));
const Real i_to_r_gate_tau_r = (2.75352 + 14.40516 / (1.037 * exp(0.09 * (Vm * 1000.0 + 30.61)) + 0.369 * exp(-0.12 * (Vm * 1000.0 + 23.84)))) / 1000.0;
*_new_r = i_to_r_gate_r_inf + (r - i_to_r_gate_r_inf) * exp(-(dt / i_to_r_gate_tau_r));

// electric_potentials
const Real electric_potentials_E_Ca = 0.5 * (model_parameters_R * model_parameters_T) / model_parameters_F * log(model_parameters_Cao / (Cai));
const Real electric_potentials_E_Na = model_parameters_R * model_parameters_T / model_parameters_F * log(model_parameters_Nao / (Nai));
const Real electric_potentials_E_Ks = model_parameters_R * model_parameters_T / model_parameters_F * log((model_parameters_Ko + electric_potentials_PkNa * model_parameters_Nao) / (model_parameters_Ki + electric_potentials_PkNa * Nai));

// i_CaL
const Real i_CaL_i_CaL = i_CaL_g_CaL * (4.0 * (Vm * pow(model_parameters_F, 2.0))) / (model_parameters_R * model_parameters_T) * (Cai * exp(2.0 * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) - 0.341 * model_parameters_Cao) / ((fabs(exp(2.0 * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) - 1.0) < VERY_SMALL_NUMBER) ? ((exp(2.0 * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) - 1.0 < 0.0) ? -VERY_SMALL_NUMBER : VERY_SMALL_NUMBER) : exp(2.0 * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) - 1.0) * (d * (f1 * (f2 * fCa)));

// i_Kr_Xr1_gate
const Real i_Kr_Xr1_gate_alpha_Xr1 = 450.0 / (1.0 + exp((-45.0 - Vm * 1000.0) / 10.0));
const Real i_Kr_Xr1_gate_beta_Xr1 = 6.0 / (1.0 + exp((30.0 + Vm * 1000.0) / 11.5));
const Real i_Kr_Xr1_gate_tau_Xr1 = 1.0 * (i_Kr_Xr1_gate_alpha_Xr1 * i_Kr_Xr1_gate_beta_Xr1) / 1000.0;
const Real i_Kr_Xr1_gate_Xr1_inf = 1.0 / (1.0 + exp((i_Kr_Xr1_gate_V_half - Vm * 1000.0) / 4.9));
*_new_Xr1 = i_Kr_Xr1_gate_Xr1_inf + (Xr1 - i_Kr_Xr1_gate_Xr1_inf) * exp(-(dt / i_Kr_Xr1_gate_tau_Xr1));

// i_NaCa
const Real i_NaCa_i_NaCa = i_NaCa_kNaCa * (exp(i_NaCa_gamma * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) * (pow(Nai, 3.0) * model_parameters_Cao) - exp((i_NaCa_gamma - 1.0) * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) * (pow(model_parameters_Nao, 3.0) * (Cai * i_NaCa_alpha))) / ((pow(i_NaCa_KmNai, 3.0) + pow(model_parameters_Nao, 3.0)) * ((i_NaCa_KmCa + model_parameters_Cao) * (1.0 + i_NaCa_Ksat * exp((i_NaCa_gamma - 1.0) * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)))));

// i_NaK
const Real i_NaK_i_NaK = i_NaK_PNaK * model_parameters_Ko / (model_parameters_Ko + i_NaK_Km_K) * Nai / (Nai + i_NaK_Km_Na) / (1.0 + (0.1245 * exp(-0.1 * (Vm * model_parameters_F) / (model_parameters_R * model_parameters_T)) + 0.0353 * exp(-Vm * model_parameters_F / (model_parameters_R * model_parameters_T))));

// i_K1
const Real i_K1_alpha_K1 = 3.91 / (1.0 + exp(0.5942 * (Vm * 1000.0 - electric_potentials_E_K * 1000.0 - 200.0)));
const Real i_K1_beta_K1 = (-1.509 * exp(0.0002 * (Vm * 1000.0 - electric_potentials_E_K * 1000.0 + 100.0)) + exp(0.5886 * (Vm * 1000.0 - electric_potentials_E_K * 1000.0 - 10.0))) / (1.0 + exp(0.4547 * (Vm * 1000.0 - electric_potentials_E_K * 1000.0)));
const Real i_K1_XK1_inf = i_K1_alpha_K1 / (i_K1_alpha_K1 + i_K1_beta_K1);
const Real i_K1_i_K1 = i_K1_g_K1 * (i_K1_XK1_inf * ((Vm - electric_potentials_E_K) * sqrt(model_parameters_Ko / 5.4)));

// i_Kr
const Real i_Kr_i_Kr = i_Kr_E4031_coeff * (i_Kr_g_Kr * ((Vm - electric_potentials_E_K) * (Xr1 * (Xr2 * sqrt(model_parameters_Ko / 5.4)))));

// i_Ks
const Real i_Ks_i_Ks = i_Ks_Chromanol_coeff * (i_Ks_g_Ks * ((Vm - electric_potentials_E_Ks) * (pow(Xs, 2.0) * (1.0 + 0.6 / (1.0 + pow(3.8 * 1e-05 / (Cai), 1.4))))));

// i_Na
const Real i_Na_i_Na = i_Na_TTX_coeff * (i_Na_g_Na * (pow(m, 3.0) * (h * (j * (Vm - electric_potentials_E_Na)))));

// i_b_Ca
const Real i_b_Ca_i_b_Ca = i_b_Ca_g_b_Ca * (Vm - electric_potentials_E_Ca);

// i_b_Na
const Real i_b_Na_i_b_Na = i_b_Na_g_b_Na * (Vm - electric_potentials_E_Na);

// i_to
const Real i_to_i_to = i_to_g_to * ((Vm - electric_potentials_E_K) * (q * r));

// Membrane
*_new_Vm = Vm + dt*(_diffuse_Vm - (i_K1_i_K1 + i_to_i_to + i_Kr_i_Kr + i_Ks_i_Ks + i_CaL_i_CaL + i_NaK_i_NaK + i_Na_i_Na + i_NaCa_i_NaCa + i_PCa_i_PCa + i_f_i_f + i_b_Na_i_b_Na + i_b_Ca_i_b_Ca));

// calcium_dynamics
const Real calcium_dynamics_g_inf = ((Cai <= 0.00035) ? 1.0 / (1.0 + pow(Cai / 0.00035, 6.0)) : 1.0 / (1.0 + pow(Cai / 0.00035, 16.0)));
const Real calcium_dynamics_Ca_SR_bufSR = 1.0 / (1.0 + calcium_dynamics_Buf_SR * calcium_dynamics_Kbuf_SR / (pow(Ca_SR + calcium_dynamics_Kbuf_SR, 2.0)));
const Real calcium_dynamics_Cai_bufc = 1.0 / (1.0 + calcium_dynamics_Buf_C * calcium_dynamics_Kbuf_C / (pow(Cai + calcium_dynamics_Kbuf_C, 2.0)));
const Real calcium_dynamics_const2 = (((calcium_dynamics_g_inf > g) && (Vm > -0.06)) ? 0.0 : 1.0);
const Real calcium_dynamics_i_leak = (Ca_SR - Cai) * calcium_dynamics_V_leak;
const Real calcium_dynamics_i_rel = (calcium_dynamics_c_rel + calcium_dynamics_a_rel * pow(Ca_SR, 2.0) / (pow(calcium_dynamics_b_rel, 2.0) + pow(Ca_SR, 2.0))) * (d * (g * calcium_dynamics_g_factor));
const Real calcium_dynamics_i_up = calcium_dynamics_VmaxUp / (1.0 + pow(calcium_dynamics_Kup, 2.0) / (pow(Cai, 2.0)));
*_new_Ca_SR = Ca_SR + dt*(calcium_dynamics_Ca_SR_bufSR * model_parameters_Vc / model_parameters_V_SR * (calcium_dynamics_i_up - (calcium_dynamics_i_rel + calcium_dynamics_i_leak)));
*_new_Cai = Cai + dt*(calcium_dynamics_Cai_bufc * (calcium_dynamics_i_leak - calcium_dynamics_i_up + calcium_dynamics_i_rel - (i_CaL_i_CaL + (i_b_Ca_i_b_Ca + i_PCa_i_PCa) - 2.0 * i_NaCa_i_NaCa) * model_parameters_Cm / (2.0 * (model_parameters_Vc * (model_parameters_F * 1e-18)))));
*_new_g = g + dt*(calcium_dynamics_const2 * (calcium_dynamics_g_inf - g) / calcium_dynamics_tau_g);

// sodium_dynamics
*_new_Nai = Nai + dt*(-model_parameters_Cm * (i_Na_i_Na + (i_b_Na_i_b_Na + (3.0 * i_NaK_i_NaK + 3.0 * i_NaCa_i_NaCa))) / (model_parameters_F * (model_parameters_Vc * 1e-18)));

// check for unphysical values
if(*_new_Nai <= 0.0) { *_new_Nai = VERY_SMALL_NUMBER; }
if(*_new_Cai <= 0.0) { *_new_Cai = VERY_SMALL_NUMBER; }
if(*_new_Ca_SR <= 0.0) { *_new_Ca_SR = VERY_SMALL_NUMBER; }
