Trivial model¶

Key: trivial

This model encodes only diffusion, with a zero reaction term.

Figure¶

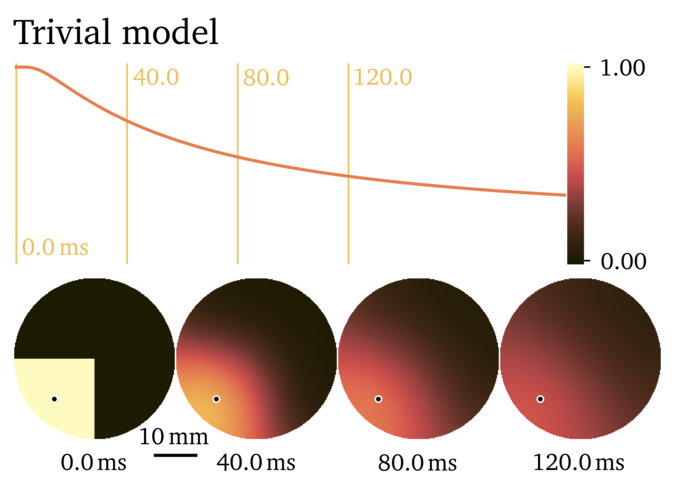

Figure illustrating the Trivial model model.

Variables¶

u = 0.0

Parameters¶

diffusivity_u = 1.0

Source code¶
OpenCL kernel*_new_u = u + dt * _diffuse_u;

Additional metadata¶

keywords:
- diffusion
example discretisation:
  dt: 0.004
  dx: 0.2
  stimulus: 1.0
units:
  t: ms
  x: mm
  u: 1
